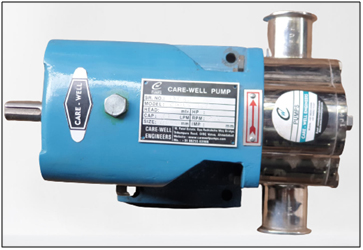

Lobe Rotary Gear Pump - CWLB
------------------------------------Care-Well Engineers offers most efficient and economic range of Positive Displacement Rotary Lobe Pumps under the brand name"CARE-WELL PUMPS" having special features like simple & compact design, low noise, high efficiency, easy to maintain, reliable and low cost. "CARE-WELL PUMPS" Rotary Lobe Gear Pumps are ideal for low viscosity, high viscosity, solids Particles. The Pumps are useful for handling viscous liquids i.e. all kinds of Dairy, Bakery, Beverages, Pharma, Cosmetics, Chocolates, Penut butter etc.Solid stainless steel, ASI 316 quality, pump head, rotors and shafts. Food quality rubber covered and plastic rotors are also available.
CWLB Tri - Lobe Pump Material of Construction
Part |
Material For CWLB |
Pump Body |
CF8M [SS-316] |
Front Cover |
CF8M [SS-316] |
Back Cover |
CF8M [SS-316] |
Packing |
Teflon Sheet |
Sealing |
Mech. Seal |
Bush Bearings |
Teflon Coated "DU" |
Dom Nut |
AISI [SS-316] |
Rotor/Stator Shaft |
AISI [SS-316] |
R.H. & L.H. Gear |
AISI [SS-316] |
Key for Coupling |
SS-304 |
CWLB Tri - Lobe Pump Foot Mounted Technical Specification
Model |
Suction & Delivery Size |
Capacity @ |
Pressure |
|
LPM |
US. GPM |
|||
CWLB-100 |
1" x 1" |
8 |
2.25 |
7 |
CWLB-150 |
1/2"x 1/2" |
18 |
4.78 |
7 |
CWLB-200 |
2" x 2" |
38 |
10.15 |
7 |
CWLB-250 |
2 ½" x 2 ½" |
79 |
20.87 |
7 |
CWLB-300 |
3" x 3" |
168 |
44.39 |
7 |
CWLB-400 |
4" x 4" |
350 |
92.5 |
7 |
Applications:
- Batters, Flavorings, Frostings, Fruit Fillings, Fat & Oils, Sweeteners, Yeast Slurry Dough.
- Tomato Paste , Fruit Paste , Cream Style , Vegetables, Puddings, Jams, Jellies, Salads Dressings, Mayonnaise, Baby Foods, Soups, Stews./li>
- Cream, Milk, Cheese, Curd & Whey, Cottage, Cheese, Yogurt, Margarine, Butter.
- Beer, Wort Yeast, Alcohols & Wines soft Drinks, Fruit Concentrates, Fruit Drinks, Essences.
- Heand & Face Creams, Lotion Shampoos, Dyes, Alcohols, Essential Oils.
- Cream Fillings, Chocolates, Coffee Caramel.
Features:
- Self Priming Positive Displacement Rotary Lobe Pumps.
- Easy-clean pump of head which is ideal for in place cleaning, or can be rapidly stripped for manual cleaning, without disconnecting the pipe work.
- Pumping chambers are without pockets or crevices to harbor bacteria or contaminants. No Contact between moving parts and no internal bearings in the pump head.
- Robust, Cast Iron gear case enclosing oil Lubricated rolling bearings are precision timing gears.
Range:
- Capacity: UP TO 15 M3/HR.
- Size: 1/2" X 1/2" TO 3" X 3”.
- Speed: UP TO 1000 RPM.
- Pressure: Up TO 7 KG/CM2.
- M.O.C.: CF-8M (SS-316)
